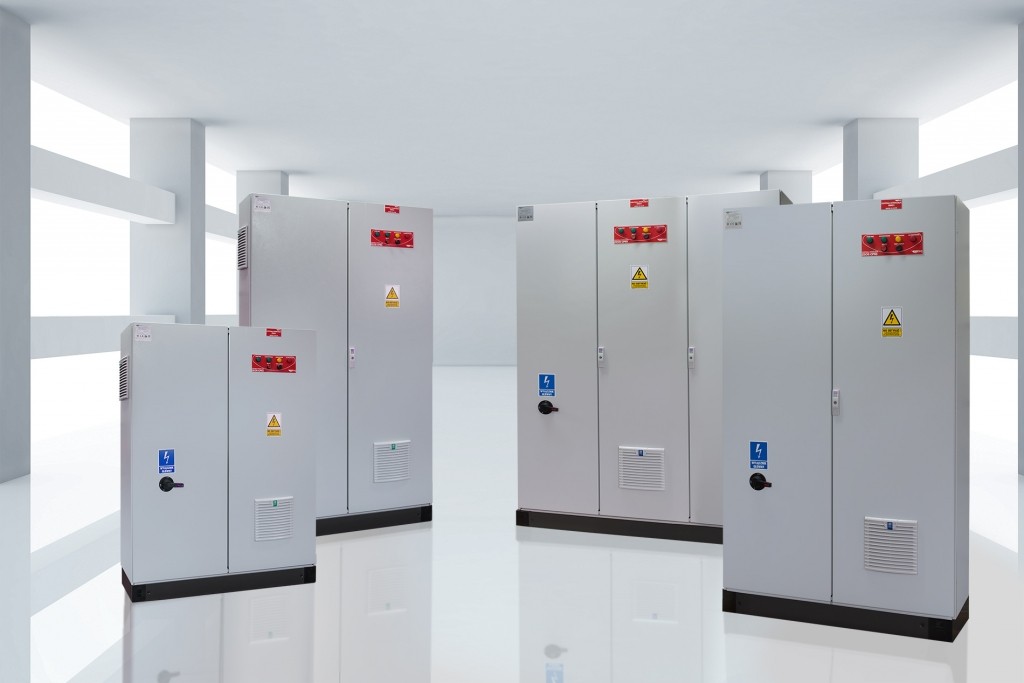

The control panel of ZEOS CP03 fire protection devices is intended for supplying, controlling and monitoring devices and elements of the smoke and heat control system, in particular:

• fire fans,

• household fans,

• fire and living fans,

• fire dumpers, fire gates and smoke curtains,

• gas detection systems.

The control panel has the national technical assessment, the certificate of admittance and appropriate CNBOP-PIB certificates confirming the functionality of the power supply in line with the PN-EN 12101-10 standard and the control panel controlling fire protection devices. The control panel makes it possible to control motors, eg fans with configurations, eg direct start, star-delta start, Dahlander circuit, powered and controlled by a frequency converter. This control takes place both for reverse and unidirectional operation, for single and multi-speed control, and in the case of liquid or step frequency converters - expenditure regulation. It provides the ability to monitor the line to the main fire fans motors both during operation and stopping as well as to fire damper actuators not in a safe condition. It increases the reliability of the installation, thanks to the earlier diagnosis of damage. The control panel can be used as a single unit or a set of control panels connected in a network. In the case of networks, the failure of a single control panel does not affect the implementation of fire functions through the other switchboards.

The cabinet is designed for supplying and controlling devices that are part of the home ventilation system. It can be used for 1-phase and 3-phase fans of any type of start-up and additional devices such as dampers and dampers. It enables implementation of each control matrix for the system in accordance with the design assumptions. For simple systems, a relay control system is used or, in the case of complex systems, a control system based on a PLC controller. Depending on the design requirements, it is possible to cooperate with the CO / LPG / CNG detection system, the temperature measurement system or their operation directly through the cabinet. The cabinet has the ability to cooperate with the BMS system on communication protocols or in the form of a potential-free contact strip. The cabinet can be equipped with a touch panel for operation or optical signaling and buttons for operation on the façade.

The control panel of ZEOS CP02 fire protection devices is intended for supplying, controlling and monitoring devices and elements of the smoke and heat control system, in particular:

• fire fans,

• household fans,

• fire and living fans,

• fire dumpers, fire gates and smoke curtains,

• gas detection systems.

The ZEOS CP02 control unit has a built-in ATS system and can work with two power sources. Created especially for facilities not equipped with automatic power supply. The control panel has the national technical assessment, the certificate of admittance and appropriate CNBOP-PIB certificates confirming the functionality of the power supply in line with the PN-EN 12101-10 standard and the control panel controlling fire protection devices. The control panel makes it possible to control motors, eg fans with configurations, eg direct start, star-delta start, Dahlander circuit, powered and controlled by a frequency converter. This control takes place both for reverse and unidirectional operation, for single and multi-speed control, and in the case of liquid or step frequency converters - expenditure regulation. It provides the ability to monitor the line to the main fire fans motors both during operation and stopping as well as to fire damper actuators not in a safe condition. It increases the reliability of the installation, thanks to the earlier diagnosis of damage. The control panel can be used as a single unit or a set of control panels connected in a network. In the case of networks, the failure of a single control panel does not affect the implementation of fire functions through the other switchboards.
